FPG-LT Envelope Coffee Bag Packaging Machines
New standard model for enveloped coffee bag production, upgraded from the FPG-T1 with easier operation and higher performance. Supports wide-range of coffee ground levels and filling weights.
In stock, ready to ship
Product Details
Enhanced Productivity
- A 20% increase in performance over the previous model FPG-T1, now achieving a consistent 60 bags/minute.

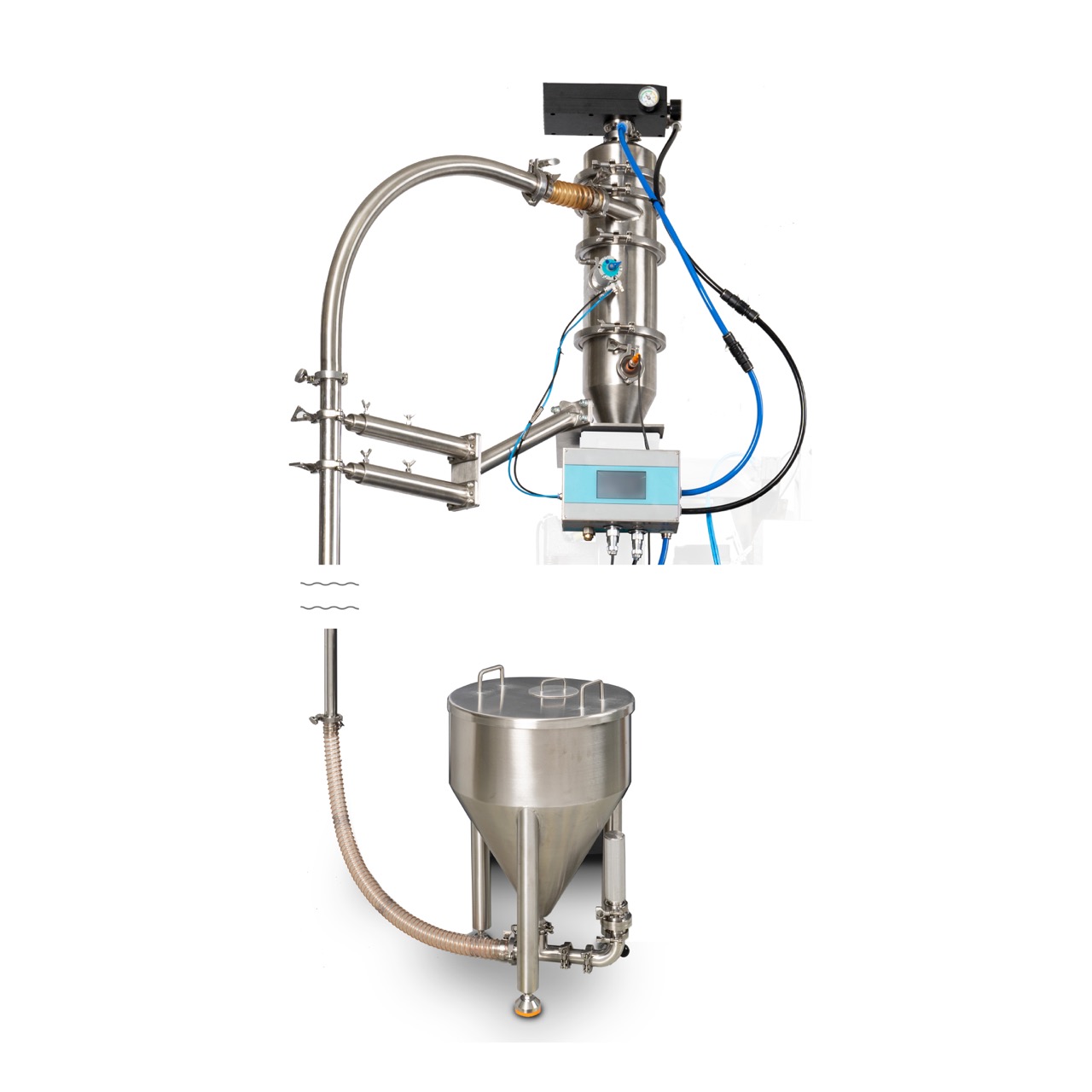

- The optional NVF-100E vacuum feeder can be installed in place of the standard hopper, making the loading of ground coffee safer and easier, while also ensuring stable volumetric measurements.
Multiple Measuring Options for Your Product
The measurement method can be selected from an auger filler, a volumetric slide doser, or a weigher. The auger filler is ideal for fine-ground and dark roast coffee and is also suitable for large-volume filling. The volumetric slide doser, on the other hand, provides greater accuracy for medium to coarse ground coffee.
Recommended Solution: FPG-LT + NRC-50D

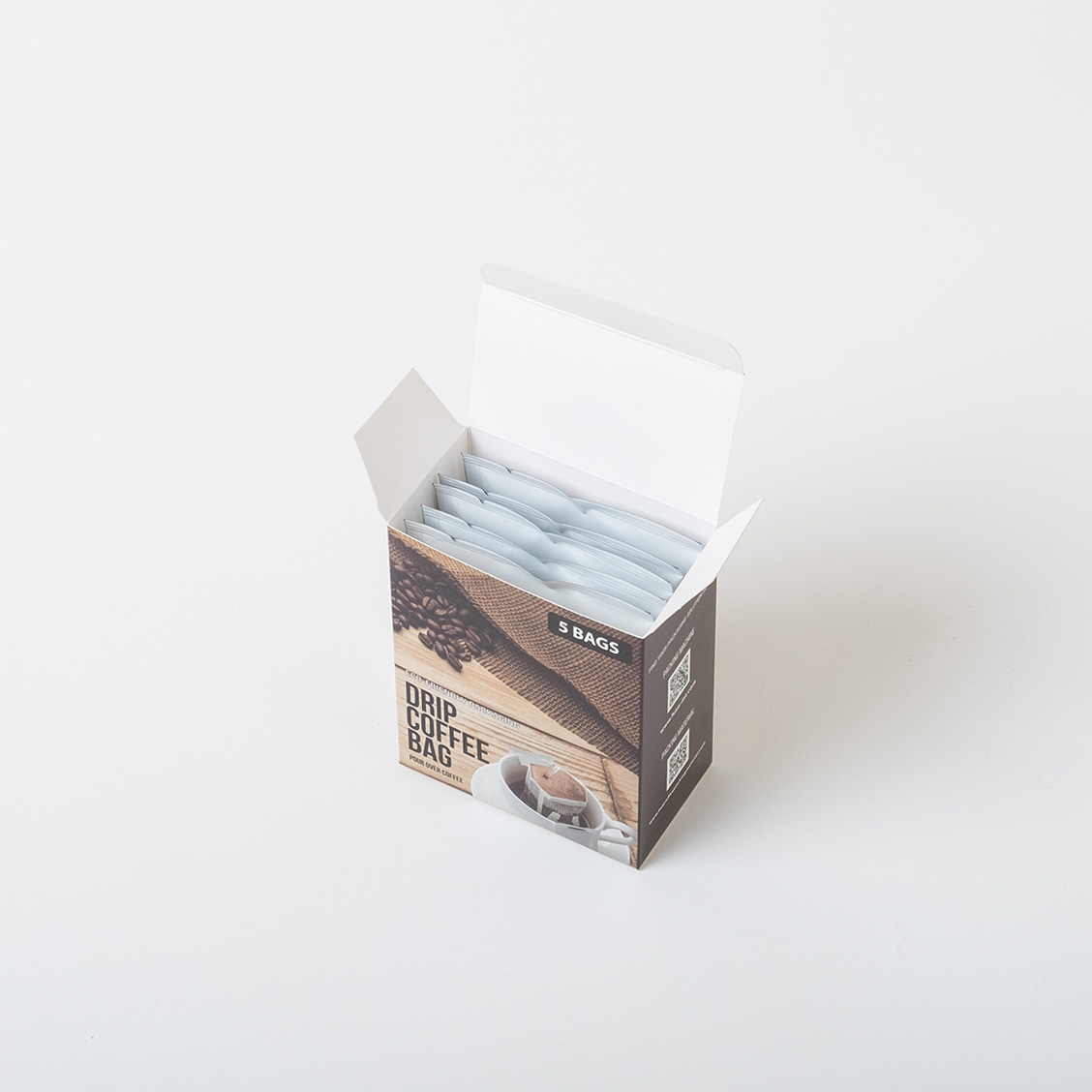

By integrating the FPG-LT with the NRC-50D cartoner, you can semi-automate the cartoning of 5 to 8 enveloped coffee bags.
Recommended Solution: FPG-LT + FR-3DR

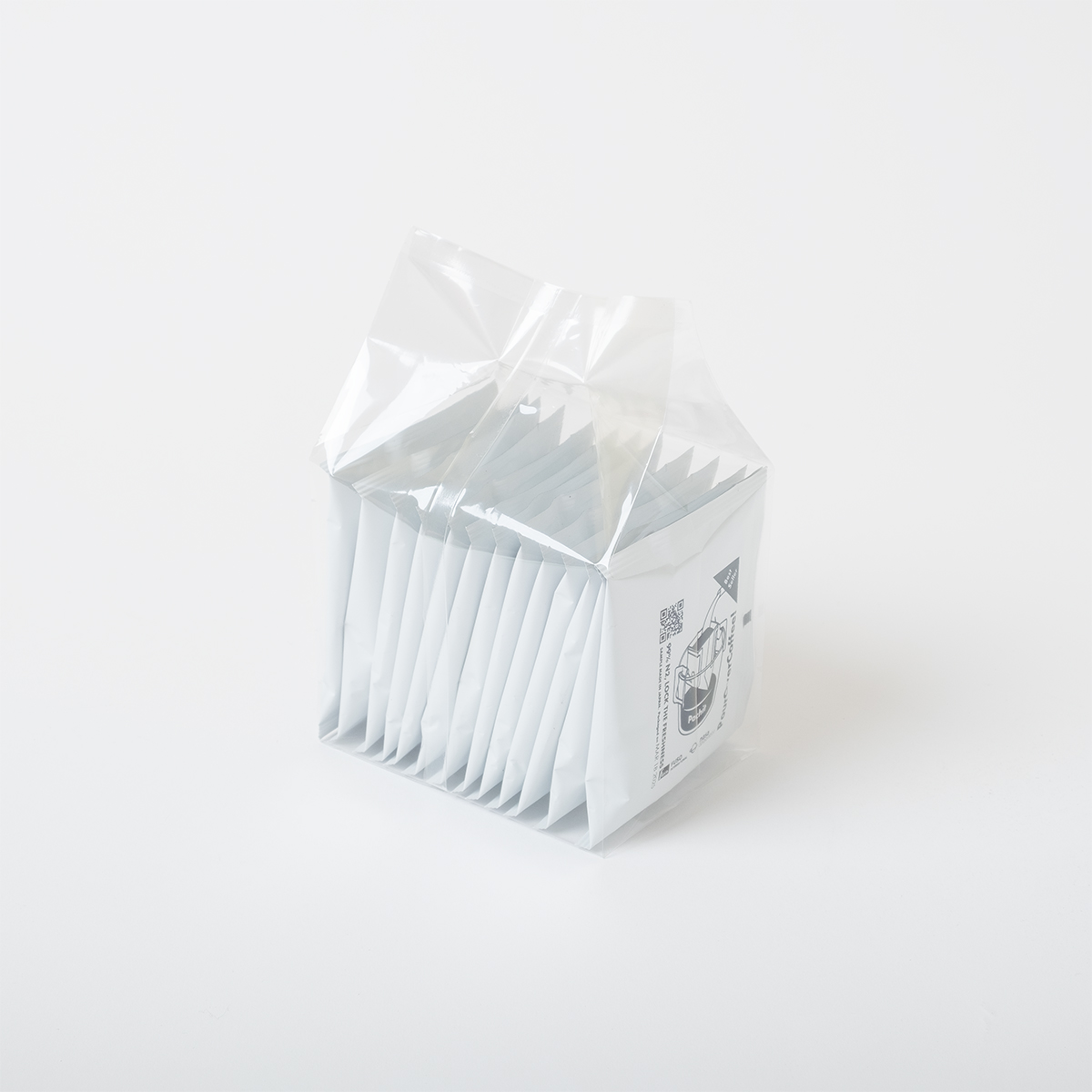

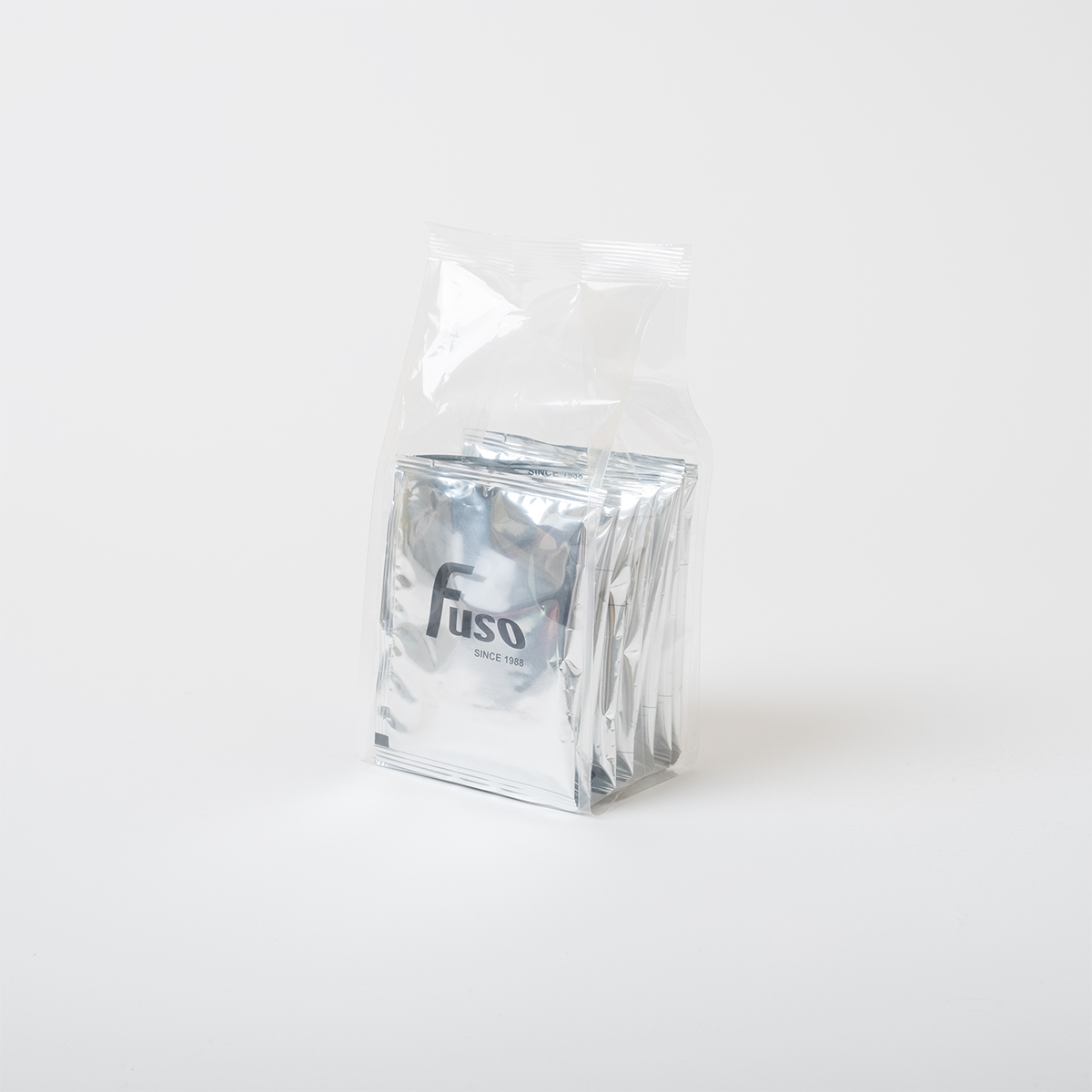

By integrating the FPG-LT with the FR-3DR outer bag filling machine, you can automate the packaging process of 5 to 9 enveloped coffee bags into side gusseted bags.
Specifications Model
| Weight | 960 kg |
| Compressed air supply | 0.6 MPa 400 L/minute |
| Dimensions | 1,200 (W) x 1,090 (D) x 2,510 (H) mm |
Power Envelope size | 3 Phase 200 V 3.7 kW Length (Pitch): 85 to 135 mm Width: 70 to 120 mm |
